Image And Text in Cell (Variant 1)

This page demonstrates the capabilities of displaying an image and text in a grid cell using the OnCreateDataCellContent and OnDataCellInitContent events of the TDataGridLayoutColumnEh column type.

SolutionFrame.ImageAndTextInCell.pas

unit SolutionFrame.ImageAndTextInCell;

interface

uses
  System.SysUtils, System.Types, System.UITypes, System.Classes, System.Variants,
  System.Rtti,
  FMX.Types, FMX.Graphics, FMX.Controls, FMX.Forms, FMX.Dialogs, FMX.StdCtrls,
  EhLibFmx.Api, EhLibUtils, DBUtilsEh,
  EhLibFmx.ToolControls, EhLibFmx.Grids, EhLibFmx.DataAxisGrids,
  EhLibFmx.CustomDataGrids, EhLibFmx.DataGrids, FMX.Controls.Presentation,
  EhLibFmx.DataAxisGrid.FieldBars, EhLibFmx.DataGrid.Columns;

type
  TfrImageAndTextInCell = class(TFrame)
    Panel1: TPanel;
    DataGridEh1: TDataGridEh;
    DataGridEh1OrderNoColumn1: TDataGridStringColumnEh;
    DataGridEh1CustNoColumn1: TDataGridStringColumnEh;
    DataGridEh1PaymentMethodColumn1: TDataGridStringColumnEh;
    DataGridLayoutColumnEh1: TDataGridLayoutColumnEh;
    Button1: TButton;
    procedure DataGridLayoutColumnEh1CreateDataCellContent(Sender: TObject;
      Params: TDataGridCreateDataCellContentParamsEh);
    procedure DataGridLayoutColumnEh1DataCellInitContent(Sender: TObject;
      Params: TDataGridInitDataCellContentParamsEh);
    procedure Button1Click(Sender: TObject);
  private
    { Private declarations }
  public
    constructor Create(AOwner: TComponent); override;
  end;

implementation

uses DataModuleUnit;

{$R *.fmx}

constructor TfrImageAndTextInCell.Create(AOwner: TComponent);
begin
  inherited Create(AOwner);
  Button1Click(nil);
  Panel1.Visible := False;
end;

procedure TfrImageAndTextInCell.Button1Click(Sender: TObject);
begin
  DataGridEh1PaymentMethodColumn1.Title.FilterItem.SetExpression(
    TSTFilterOperatorEh.foNotEqual, 'Credit',
    TSTFilterOperatorEh.foNon,
    TSTFilterOperatorEh.foNon, TValue.Empty);
  DataGridEh1.Title.Filter.ApplyFilter();
end;

procedure TfrImageAndTextInCell.DataGridLayoutColumnEh1CreateDataCellContent(Sender: TObject;
  Params: TDataGridCreateDataCellContentParamsEh);
begin
  with TLaGridPanelEh.CreateWith(Params.ContentParent) do
  begin
    Params.CellContent := RefSelf as TLaControlEh;

    Margins.Rect := TRectF.Create(10, 0, 1, 0);

    with ColumnCollection.Add do
    begin
      SizeStyle := TLaGridPanelSizeStyleEh.Pixel;
      Value := 32;
    end;

    with ColumnCollection.Add do
    begin
      SizeStyle := TLaGridPanelSizeStyleEh.Weight;
      Value := 1;
    end;

    //Col1 Image
    with TLaImageEh.CreateWith(RefSelf, RefSelf) do
    begin
      ControlCollection.AddControl(RefSelf, 0, -1);
      Name := 'InCellImage';
      Width := 24;
      Height := 24;
      ImageList := DataModule1.imLstPaymentTypes;
      ImageIndex := 0;
      VertAlignment := TLaVertAlignmentEh.Center;
    end;

    //Col2 Text
    with TLaTextBlockEh.CreateWith(RefSelf, RefSelf) do
    begin
      ControlCollection.AddControl(RefSelf, 1, -1);
      Margins.Rect := RectF(2, 2, 2, 2);
      VertAlignment := TLaVertAlignmentEh.Center;
      HorzAlignment := TLaHorzAlignmentEh.Stretch;
      Text := '1';
      FieldName := 'PaymentMethod';
    end;
  end;
end;

procedure TfrImageAndTextInCell.DataGridLayoutColumnEh1DataCellInitContent(Sender: TObject;
  Params: TDataGridInitDataCellContentParamsEh);
var
  ContValue: TValue;
  ImageIndex: Integer;
  InCellImage: TLaImageEh;
begin
  if Params.CellContent = nil then Exit;

  ContValue := DataGridEh1PaymentMethodColumn1.GetRowValue(Params.Row);

  InCellImage := Params.CellContent.GetElementByName('InCellImage') as TLaImageEh;
  ImageIndex := DataModule1.GetImageIndexByPaymentMethod(ValueToString(ContValue));
  InCellImage.ImageIndex := ImageIndex;
end;

end.

TfrImageAndTextInCell.DataGridLayoutColumnEh1CreateDataCellContent event handler

The DataGridLayoutColumnEh1CreateDataCellContent event handler is bound to the TDataGridLayoutColumnEh.OnCreateDataCellContent event and performs the following actions:

• A panel of type TLaGridPanelEh is created.
• Two columns are added to the panel:
  • The first column contains a control for displaying an image and has a fixed width.
  • The second column contains text and occupies the remaining width of the panel.
• A TLaImageEh control is created and added to the first column of the TLaGridPanelEh panel.
• The Name property of TLaImageEh is set to allow the LaControl to be located in the OnDataCellInitContent event.
• The ImageList property is assigned to TLaImageEh, specifying that images will be displayed based on the combination of the ImageList and ImageIndex properties. The image index is set later in the OnDataCellInitContent event.
• A TLaTextBlockEh control is created, and its FieldName property is set to 'PaymentMethod'. This allows TLaTextBlockEh to automatically populate its Text property based on the PaymentMethod field of the current record.

TfrImageAndTextInCell.DataGridLayoutColumnEh1DataCellInitContent event handler

The DataGridLayoutColumnEh1DataCellInitContent event handle is bound to the TDataGridLayoutColumnEh.OnDataCellInitContent event and performs the following actions:

• The value of the PaymentMethod field is retrieved using the TDataGridBaseColumnEh.GetRowValue method.
• The TLaImageEh control is located by its control name within the LaObjects element tree using the TLaObjectEh.GetElementByName method.
• Based on the payment method name, the image index for display in the ImageList is determined.

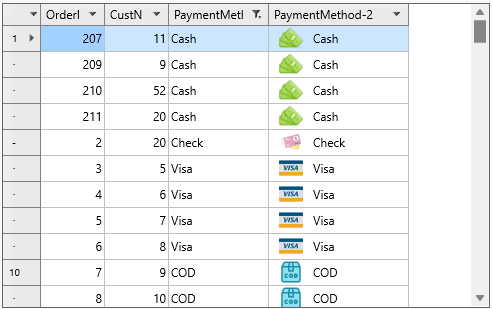

As a result, the grid cells will look like this:
